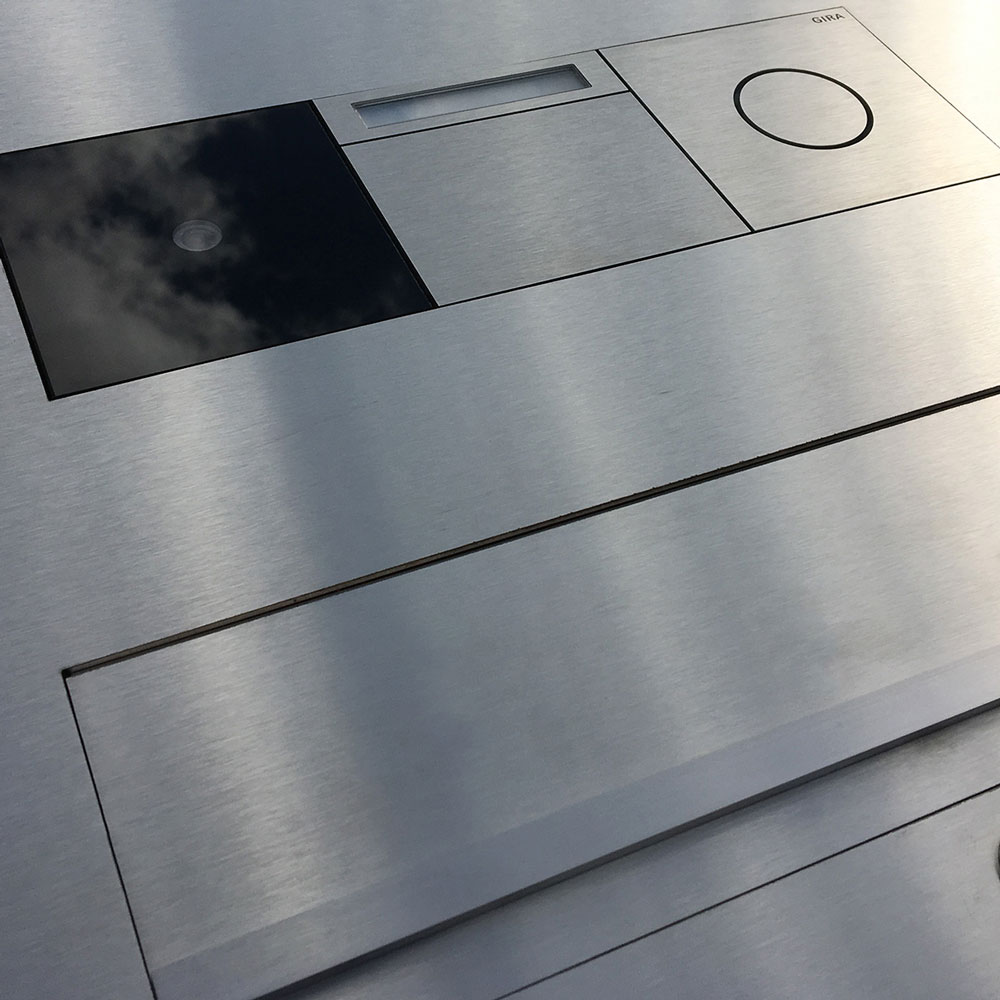

With the letterbox video intercom B3-Gira 106 we offer you the optimum letterbox system to match your existing Gira 106 bell system.
The existing cut-out in the B3 stainless steel front panel is suitable for a Gira 106 system with three elements.
Simple installation of your Gira 106 bell system
With the four screws included in the scope of delivery, you can attach your Gira 106 system to your new B3 letterbox in just a few steps.
Also the installation of the letterbox video intercom B3-Gira 106 was deliberately kept simple to make the installation as easy and as fast as possible.
design. Accordingly, you receive your system completely pre-assembled.
After plastering the supplied flush-mount box, either 100mm or 150mm deep, and mounting your Gira 106 bell system, the finished B3 cover plate is mounted inside the box using only six knurled screws. This guarantees a front panel without visible screws on the visible side.
High quality of materials used
We only use high-quality materials and stainless steels for our bell and letterbox systems. In this respect, the cover plate is also made of 2mm thick, ground stainless steel.
The total dimension of the cover plate is 450x750mm (WxH).
On the back there is a seal to guarantee a 100% watertightness between the letterbox system and the house wall.
A lockable door on the front side is used to remove the items. Dimension 320x300mm (WxH).
As standard, you receive two keys for each system.
The letter slot 320x80mm (WxH) allows the letter to be inserted up to a size of C4 envelopes.
Dimensions of the stainless steel flush-mount box included: 410x710x100mm (WxHxD). Optionally we also offer a box depth of 150mm.
Care of the letterbox video intercom B3-Gira 106
To guarantee the high quality and durability of the entire letterbox system, regular cleaning and maintenance is very important.
In the scope of delivery you will receive a can of cleaning agent with which you have to clean the system every 4-6 weeks.
Care is particularly important in the winter months or when you live directly by a body of water.
The Gira 106 bell system is not included in the scope of delivery. This is exclusively a suitable letterbox system.
