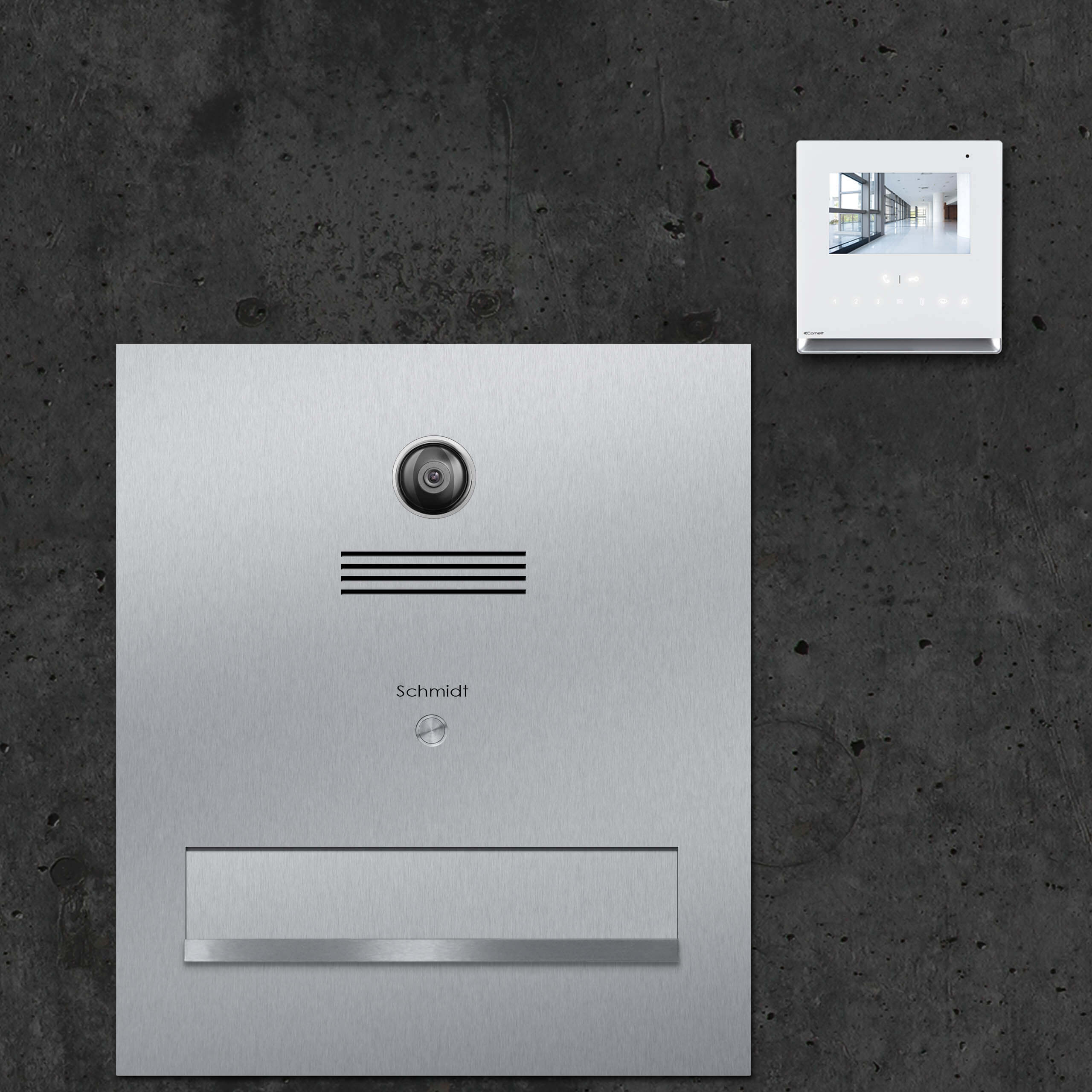

The letterbox stainless steel pass-through B3V-DW-ICONA offers you the possibility to install your letterbox system completely in the wall.
We have deliberately kept the construction of the plant small and compact, so that it can find its place not only on the house wall, but also in smaller walls or fences.
Due to the depth-adjustable shaft, the B3 penetration fits into all common masonry.
Compact. Timeless. Noble
For our letterbox systems we exclusively use high-quality materials and components. In this respect, both the 450x500mm (WxH) front panel and the 450x250mm (WxH) removal plate are made of 2mm stainless steel 1.4301 and a vertical grind. The shaft is made of 1.25mm stainless steel 1.4016 and consists of two shaft parts that can be pushed into each other. This allows a variable adjustment of the required depth of 270-400mm.
After the shaft has been successfully plastered into your wall opening, the two cover plates are simply inserted and screwed firmly to the shaft with a few screws through the insertion shaft or through the removal door. No screw connection is visible from the outside. This gives you a clean and modern look.
We have adopted the flap from our B3 collection and with 350x80mm (WxH) offers enough space even for larger envelopes or newspapers.
Due to the slightly sloping course of the chute downwards, the inserted mail slides through automatically up to the 300x100mm (WxH) large and lockable removal door.
As standard we deliver each letterbox with 2 keys.
Lettering of your choice
Below the camera there is the non-illuminated and waterproof bell button as well as the intercom system.
Directly above this, we engrave your desired name deep into the metal structure using the latest laser technology, so that it is optimally protected from external influences and will still look the same for many years to come as it did on the first day.
completely preconfigured
The video system is completely pre-installed and configured by us. Through a test run during production, we guarantee that the letterbox system reaches you completely functional. After inserting it into the wall, you have to connect the letterbox to the internal station included in the delivery and your system is immediately ready for use. The modern technology of the video system allows connection to any existing 2-wire line.

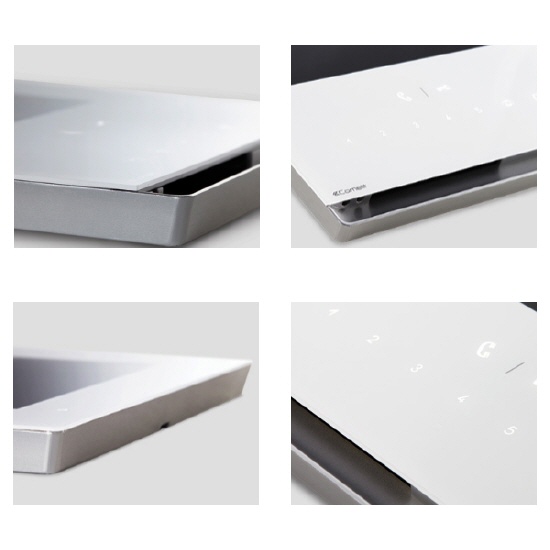

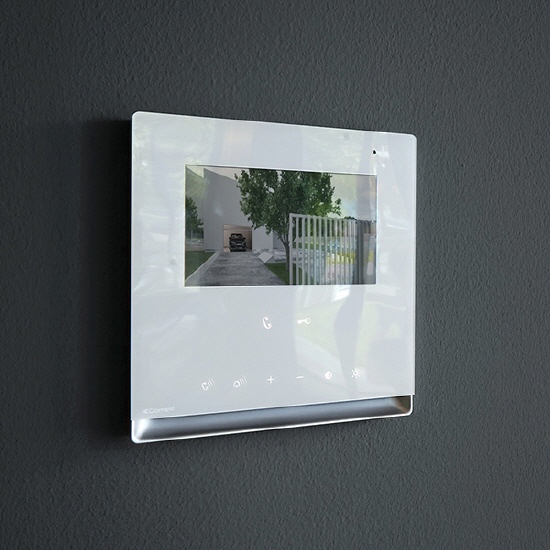

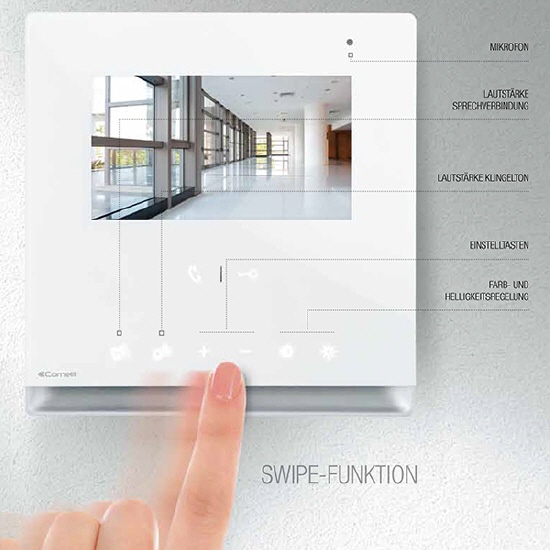

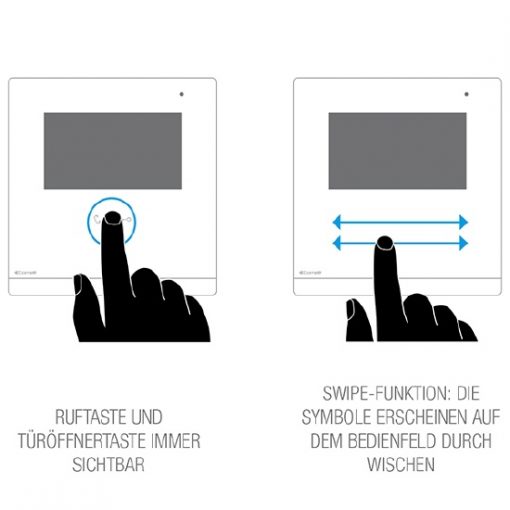

The ICONA internal call station from Comelit provides a sharp view of your front door with its 4.3-inch screen in 16:9 format (480×272 pixels). Operation is via touch-sensitive keys below the display. The microphone unit is surface-mounted and can be mounted directly on the wall or using a special flush-mount socket.
Specifications internal call station:
- Colour monitor with 4.3″ screen 16/9 (480×272 pixels)
- colour white
- Full duplex hands-free function and direct input via the display
- Adjust volume, ringtone, color, brightness and contrast
Ringtone personalization by choice of several melodies - Standard equipment with button for door opener, for activating/deactivating the speech connection with corresponding LED displays

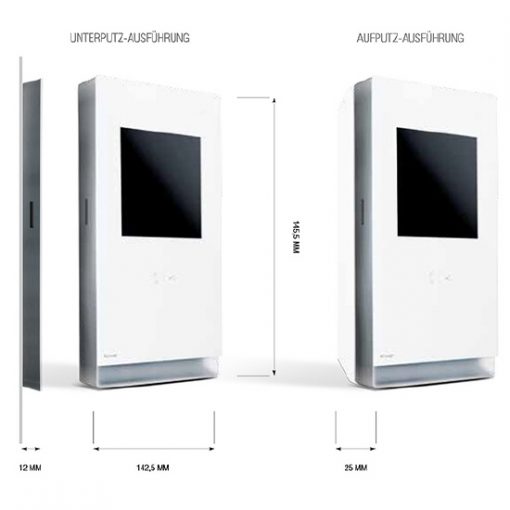

- Mounting surface-mounted version or flush-mount
Dimensions 142,5 x 147 x 23 mm
Specification camera:
- 1/3″ day/night camera
- Horizontal resolution: 540 TV lines
- Digital Signal Processing (DSP)
- Backlight compensation (BLC)
- Automatic White Balance (ATW)
- PAL Video Output Format
- Recording sensor CCD, Sony Super HAD Internal transfer
- Day/night system
- Horizontal angle of view: 100°
Extension of the system with an additional video indoor station or additional audio units is possible at any time!
Cleaning the letterbox stainless steel pass-through B3V-DW-ICONA
To guarantee the high quality and durability of the entire letterbox system, regular cleaning and maintenance is very important.
In the scope of delivery you will receive a can of cleaning agent with which you have to clean the system every 4-6 weeks.
Care is particularly important in the winter months or when you live directly by a body of water.
overall dimensions
Front cover plate: 450x500x2mm (WxHxD)
Cover plate removal door: 450x250x2mm (WxHxD)
Access flap: 350x80mm (WxH)
Removal door: 300x100mm(WxH)
Throw-through shaft: 380x225mm (WxH)
variable depth 270x-400mm
