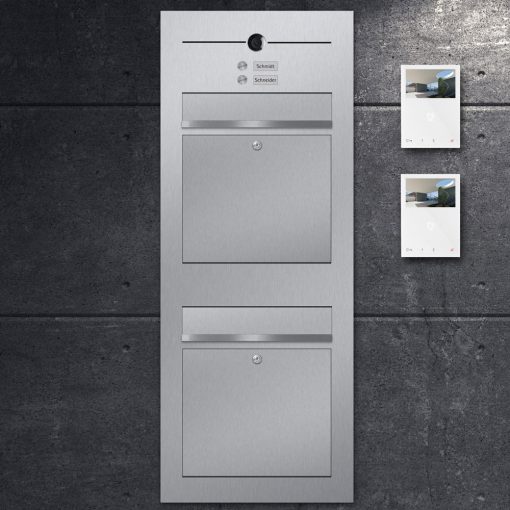

With the letterbox stainless steel B3V-LC TwinV you get the perfect solution for your two-family home.
In addition to the two separate letterboxes, you also receive a completely preconfigured video intercom system including 2 internal intercom systems.
One for each apartment.
The timeless and modern design of our letterbox collection adapts perfectly to any house front, whether modern new or historic old building, and always stays in the background.
High quality workmanship
We use only high-quality and well-known stainless steel for our entire range. The front panel is made of 2mm thick stainless steel.
The two flush-mount boxes on the back are also made of robust stainless steel and have a depth of 100mm.
Optionally you have the possibility to change to a total depth of 150mm during the ordering process.
Both letterboxes are separated from each other and can be emptied quickly and easily via the 350x300mm (HxW) removal door on the front.
You will receive 2 keys per letterbox as standard with your delivery.
The total dimensions of the system are 450 x 1160 x 100/150mm (HxWxD).
Dimension flush-mount box 410 x 1120 x 100 / 150mm (WxHxD)
With its 350x80mm (WxH) letter slot, even large letters and envelopes up to a size of C4 can be inserted.
A gripping protection directly behind the insertion prevents reaching into the interior of the letterbox.

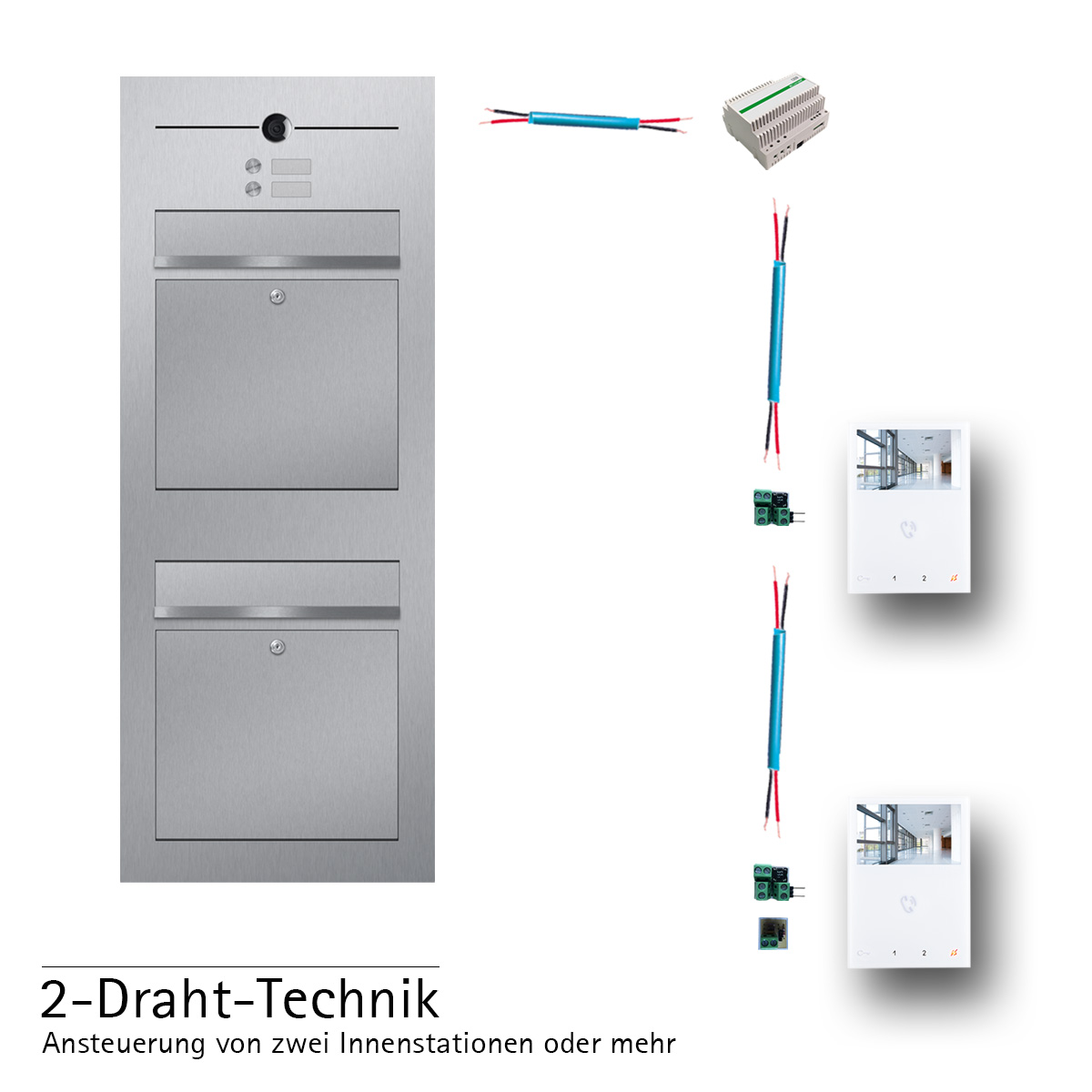

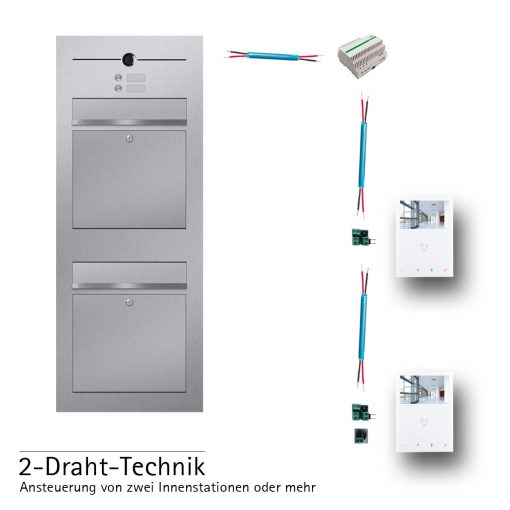

The video system is completely pre-installed and configured by us. Through a test run during production, we guarantee that the letterbox system reaches you completely functional. After inserting it into the wall, you have to connect the letterbox with the included internal call stations and your system is immediately ready for use. The modern technology of the video system allows connection to any existing 2-wire line.
The indoor call stations Mini Handfree Video from Comelit offer a sharp view of your front door through the 4.3 inch screen in 16:9 format (480×272 pixels). Operation is via touch-sensitive keys. The microphone unit is surface-mounted and can be mounted either on an existing flush-mount socket or directly on the wall using the screws supplied.
Extension of the system with an additional video indoor station or additional audio units is possible at any time!
The scope of delivery includes a total of 2 internal call stations and are controlled independently of each other.
Specifications internal call station:
- colour monitor with 4.3″ screen 16/9 (480×272 pixels)
- colour white
- Full duplex hands-free function and touch-sensitive keys
- Adjust volume, ringtone, color, brightness and contrast
Ringtone personalization by choice of several melodies
- Standard equipment with button for door opener, for activating/deactivating the speech connection with corresponding LED displays
- Mounting surface-mounted version
Dimensions 115 x 160 x 22 mm
- 1/3″ day/night camera
- Horizontal resolution: 540 TV lines
- Digital Signal Processing (DSP)
- Backlight compensation (BLC)
- Automatic White Balance (ATW)
- PAL Video Output Format
- Recording sensor CCD, Sony Super HAD Internal transfer
- Day/night system
- Horizontal angle of view: 100°
Cleaning the letterbox stainless steel B3V-LC TwinV
To guarantee the high quality and durability of the entire letterbox system, regular cleaning and maintenance is very important.
In the scope of delivery you will receive a can of cleaning agent with which you have to clean the system every 4-6 weeks.
Care is particularly important in the winter months or when you live directly by a body of water.
