With the letterbox stainless steel B3V-LC you receive our high-quality letterbox system B3 made of stainless steel, equipped with a complete video door intercom system.
With this variant we also worked on the design to make it stand out from the other B3 letterboxes while giving it a new, fresh and modern look.
At the top in the middle is the small high-resolution camera. Due to the compact design, the entire intercom system is also located there.
Both the speaker and the microphone are located behind the two black stripes.

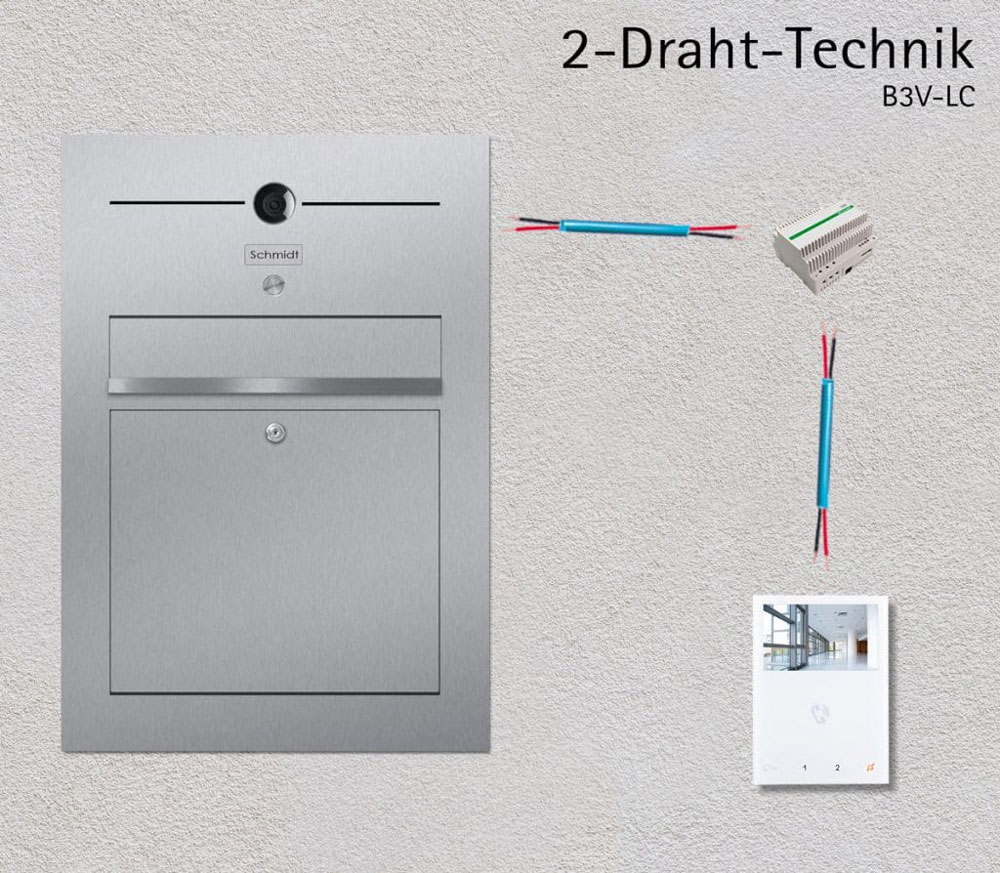

The video system is completely pre-installed and configured by us. Through a test run during production, we guarantee that the letterbox system reaches you completely functional. After inserting it into the wall, you have to connect the letterbox to the internal station included in the delivery and your system is immediately ready for use. The modern technology of the video system allows connection to any existing 2-wire line.
The internal call station Mini Handfree Video from Comelit offers a sharp view of your front door through the 4.3 inch screen in 16:9 format (480×272 pixels). Operation is via touch-sensitive keys. The microphone unit is surface-mounted and can be mounted either on an existing flush-mount socket or directly on the wall using the screws supplied.
Optionally with or without Wifi connection.
Via the optional Wifi connection you have the possibility to receive your door calls from any location via the downloadable app (Android/iOS). Not only the sound but also the entire picture is transferred directly to your mobile phone. You can also open the front door or the entrance gate remotely via the app.
To do this, you also need an existing WLAN network in your house.
Extension of the system with an additional video indoor station or additional audio units is possible at any time!
Specifications internal call station:
- Colour monitor with 4.3″ screen 16/9 (480×272 pixels)
- colour white
- Full duplex hands-free function and touch-sensitive keys
- Adjust volume, ringtone, color, brightness and contrast
Ringtone personalization by choice of several melodies
- Standard equipment with button for door opener, for activating/deactivating the speech connection with corresponding LED displays
- Mounting surface-mounted version
Dimensions 115 x 160 x 22 mm
- optional with WLAN module for mobile access
- 1/3″ day/night camera
- Horizontal resolution: 540 TV lines
- Digital Signal Processing (DSP)
- Backlight compensation (BLC)
- Automatic White Balance (ATW)
- PAL Video Output Format
- Recording sensor CCD, Sony Super HAD Internal transfer
- Day/night system
- Horizontal angle of view: 100°
With the actual design of the letterbox system we have remained true to our successful design of the B3 and have only changed or added some small details. Also here we use high-quality and ground 2mm stainless steel for the front panel. The external dimensions are 450x650mm (WxH).
The flush-mount box requires a 410mm (w) x 610mm (h) x 100mm (t) cut-out in the facade – optionally 150mm deep.
In the upper area is the video and intercom system. Directly under it we attach both the bell button and the exchangeable name tag.
On this you have the possibility to have your desired name engraved already during the order process. We use the most modern laser technology to protect it against all external influences and weather conditions.
The large flap allows easy insertion even for larger letters and envelopes up to C4. 350x80mm (WxH).
You can empty your letterbox quickly and easily via the lockable removal door, which is also located on the front panel.
We deliver 2 keys with each letterbox system as standard. Total dimensions: 350x300mm.
The letterbox is flush-mount. A 100mm deep flush-mount box is included. You have the option of selecting a 150mm deep box during the ordering process.
Cleaning of the flush-mount letterbox stainless steel b3v-lc
To guarantee the high quality and durability of the entire letterbox system, regular cleaning and maintenance is very important.
In the scope of delivery you will receive a can of cleaning agent with which you have to clean the system every 4-6 weeks.
Care is particularly important in the winter months or when you live directly by a body of water.
