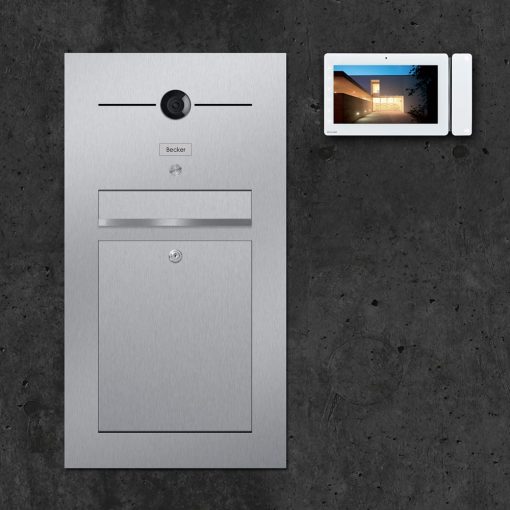

The letterbox stainless steel B2V-LC Maxi combines letterbox system and bell system in a timeless and modern look.
Above the actual letterbox there is a bell push made of high-quality stainless steel as well as a bell push.
the high-resolution colour camera and the intercom to the left and right.
Directly above the bell push button there is a marking field 50x20mm (WxH) on which we engrave your name with the help of the latest laser technology.
The lettering is burned deep inside the stainless steel so that it is protected against all environmental influences.
internal call station included
The scope of delivery also includes a surface-mounted version intercom Maxi white with integrated 7 inch screen.
With a resolution of 800×480 pixels and a 16/9 image format, it provides a pin sharp view of the front door.
In contrast to the Mini-HF, the indoor intercom is operated completely via the display. In addition to a button for opening the door in the front garden and setting up the voice connection, you can also use
You can adjust a variety of ringtones, the contrast, the volume or even the color of the screen. You also have the option of muting the entire system.
The camera in the front panel of your letterbox video intercom stainless steel B2V-LC Maxi covers a horizontal viewing angle of 100°. This gives you an optimal view and allows you to keep track of several visitors without any problems. The camera also features automatic white balance and fully digital signal processing. Even with backlight you have an optimal quality.
The total size of the letterbox is 350x650mm (WxH).
The scope of delivery also includes a matching stainless steel flush-mount box for installation in the house wall. The stainless steel front panel made of high-quality 2mm thick, ground stainless steel is flush with the facade after installation.
The letter is inserted via the 240x55mm (WxH) flap below the bell push button. This means that letters and envelopes up to a size of C4 can easily fit into this letterbox system.
letter slot 240x55mm
Front side mail removal door 240 x 300mm
Dimension door station 350 x 650 mm
Dimension wall plaster box 310 x 610 mm (standard 100mm deep, optional 150mm)
Specification Camera :
1/3″ day/night camera
Horizontal resolution: 540 TV lines
Digital Signal Processing (DSP)
Backlight compensation (BLC)
Automatic White Balance (ATW)
PAL Video Output Format
Recording sensor CCD, Sony Super HAD Internal transfer
Day/night system
Horizontal angle of view: 100°
Handsfree indoor station Maxi
Color monitor with 7 inch screen 16/9 (800×480 pixels)
colour white
Full duplex hands-free function and direct operation via the display.
Adjust volume, ringtone, color, brightness and contrast
Ringtone personalization by choice of several melodies
Standard equipment for door opener, for activating/deactivating the voice connection with corresponding LED displays
Mounting flush-mount or surface-mounted version
Dimensions 124 x 223 x 12 mm (flush-mount)
Dimensions 124 x 223 x 25 mm (surface-mounted version)
Extension of the system with additional video indoor station or additional audio units possible.
Care of the letterbox video intercom stainless steel B2V-LC Maxi
To guarantee the high quality and durability of the entire letterbox system, regular cleaning and maintenance is very important.
In the scope of delivery you will receive a can of cleaning agent with which you have to clean the system every 4-6 weeks.
Care is particularly important in the winter months or when you live directly by a body of water.
