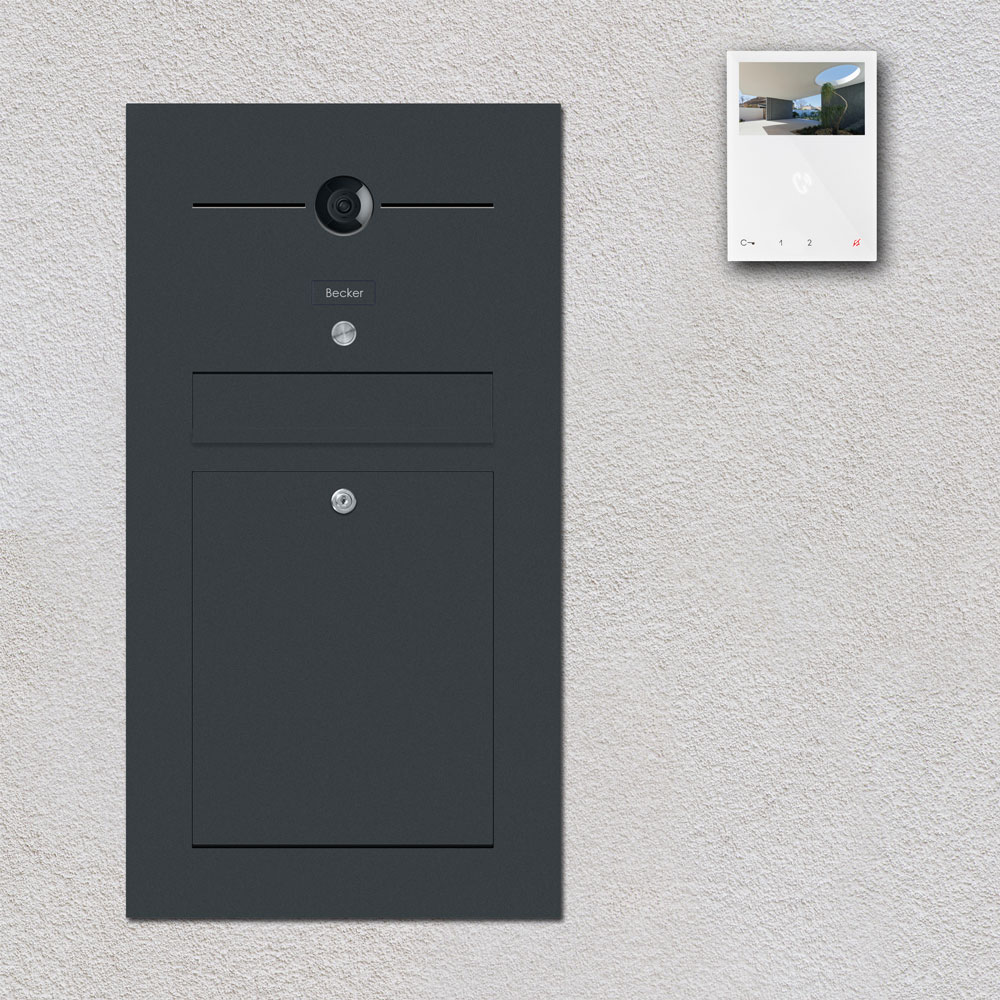

anthracite letterbox video intercom B2V-LC

The anthracite letterbox B2V-LC combines letterbox system and bell system in a timeless and modern look.
Above the actual letterbox there is a bell push made of high-quality stainless steel as well as a bell push.
the high-resolution colour camera and the intercom to the left and right.
Directly above the bell push button there is a marking field 50x20mm (WxH) on which we engrave your name with the help of the latest laser technology.
The lettering is burned deep inside the stainless steel so that it is protected against all environmental influences.

The stainless steel front panel is powder-coated in RAL7016 anthracite, making the system even more robust and easy to clean.

including internal call station

The scope of delivery also includes a surface-mounted version intercom Mini-HF white with integrated 4.3 inch screen. Optionally with or without Wifi connection.

Via the optional Wifi connection you have the possibility to receive your door calls from any location via the downloadable app (Android/iOS). Not only the sound but also the entire picture is transferred directly to your mobile phone. You can also open the front door or the entrance gate remotely via the app.
To do this, you also need an existing WLAN network in your house.

With a resolution of 480×272 pixels and a 16/9 image format, it provides a pin sharp view of the front door.
The indoor intercom is operated via touch-sensitive buttons. In addition to a button for opening the door in the front garden and setting up the voice connection, you can also use
You can adjust a variety of ringtones, the contrast, the volume or even the color of the screen. You also have the option of muting the entire system.

The camera in the front panel of your letterbox video intercom stainless steel B2V-LC covers a horizontal viewing angle of 100°. This gives you an optimal view and allows you to keep track of several visitors without any problems. The camera also features automatic white balance and fully digital signal processing. Even with backlight you have an optimal quality.

The total size of the letterbox is 350x650mm (WxH).
The scope of delivery also includes a matching stainless steel flush-mount box for installation in the house wall. The stainless steel front panel made of high-quality 2mm thick, ground stainless steel is flush with the facade after installation.

The letter is inserted via the 240x55mm (WxH) flap below the bell push button. This means that letters and envelopes up to a size of C4 can easily fit into this letterbox system.

letter slot 240x55mm
Front side mail removal door 240 x 300mm

Dimension door station 350 x 650 mm
Dimension wall plaster box 310 x 610 mm (standard 100mm deep, optional 150mm)
Specification Camera :

1/3″ day/night camera

Horizontal resolution: 540 TV lines

Digital Signal Processing (DSP)
Backlight compensation (BLC)
Automatic White Balance (ATW)

PAL Video Output Format

Recording sensor CCD, Sony Super HAD Internal transfer

Day/night system

Horizontal angle of view: 100

Hands-free indoor microphone unit Mini-HF

Colour monitor with 4.3″ screen 16/9 (480×272 pixels)

colour white

Full duplex hands-free function and touch-sensitive keys

Adjust volume, ringtone, color, brightness and contrast
Ringtone personalization by choice of several melodies

Standard equipment with button for door opener, for activating/deactivating the speech connection with corresponding LED displays

Mounting surface-mounted version
Dimensions 115x160x22mm (WxHxD)
Extension of the system with additional video indoor station or additional audio units possible

Care of the anthracite video intercom stainless steel B2V-LC

To guarantee the high quality and durability of the entire letterbox system, regular cleaning and maintenance is very important.
In the scope of delivery you will receive a can of cleaning agent with which you have to clean the system every 4-6 weeks.
Care is particularly important in the winter months or when you live directly by a body of water.
