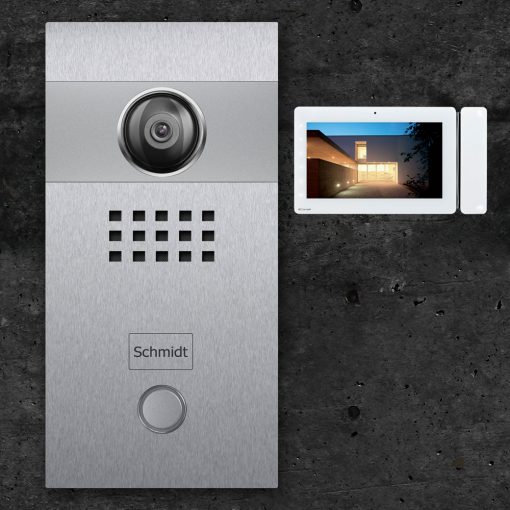

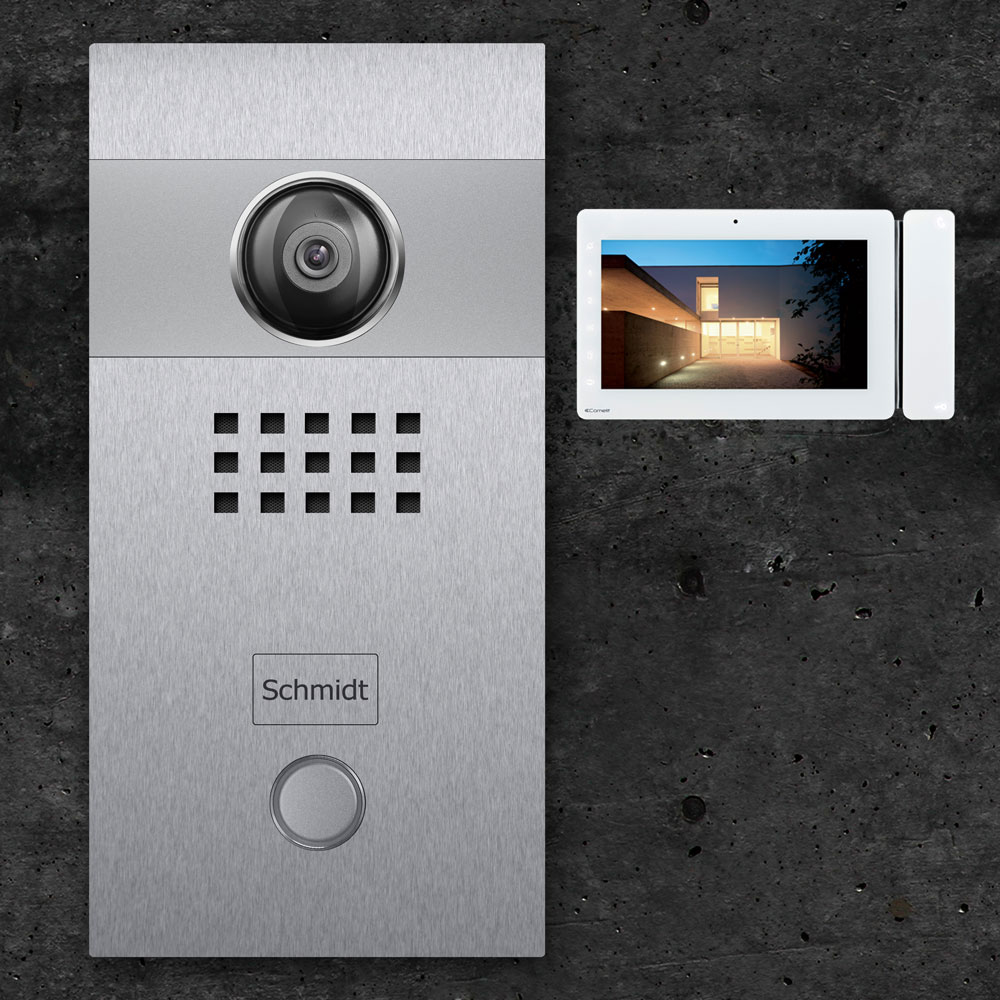

Video intercom stainless steel KTUV105G-Maxi

Made of high-quality stainless steel and its modern and timeless design, the video intercom doorbell KTUV105G Maxi is a real highlight next to your front door.
The integrated camera with its freely adjustable viewing angle is embedded in a glass bead blasted screen and creates a beautiful contrast to the rest of the stainless steel.

lettering according to your wishes

During production, we engrave your desired name with the latest laser technology either directly onto the front panel above the bell push button or onto an inscription field that can be replaced at any time.
The laser penetrates deep into the structure of the steel and changes the molecular structure there. The result is absolutely abrasion-proof and robust marking, insensitive to external influences or weather conditions. Even in many years your name will still look like it did on the first day.

The bell push has a large contact surface and is illuminated in a ring. You can choose between white, blue, green or red.

The installation of the system is either flush-mount or surface-mounted version. With the surface-mounted version we offer you the choice between a ground or in RAL7016 anthracite powder-coated body.

completely preconfigured

The video system is completely pre-installed and configured by us. Through a test run during production, we guarantee that the letterbox system reaches you completely functional. After inserting it into the wall, you have to connect the letterbox to the internal station included in the delivery and your system is immediately ready for use. The modern technology of the video system allows connection to any existing 2-wire line.

The internal call station Maxi from Comelit provides a sharp view of your front door through the 7-inch screen in 16:9 format (800×480 pixels). Operation takes place directly via the display. The microphone unit is surface-mounted and can be mounted directly on the wall or using a special flush-mount socket.

Mounting flush-mount or surface-mounted version
Dimensions 124 x 223 x 12 mm (flush-mount)
Dimensions 124 x 223 x 25 mm (surface-mounted version)

Extension of the system with an additional video indoor station or additional audio units is possible at any time!
Specifications internal call station:

• Color monitor with 7 inch screen 16/9 (800×480 pixels)
• colour white
• Full duplex hands-free function and direct input via the display
• Adjust volume, ringtone, color, brightness and contrast
  Ringtone personalization by choice of several melodies
• Standard equipment with button for door opener, for activating/deactivating the speech connection with corresponding LED displays
• Montage surface-mounted version
  Dimensions 115 x 160 x 22 mm

Specification camera:

• 1/3″ day/night camera
• Horizontal resolution: 540 TV lines
• Digital Signal Processing (DSP)
• Backlight compensation (BLC)
• AuPAL Video Output Formattomatic White Balance (ATW)
• VPAL Video Output Format
• Recording sensor CCD, Sony Super HAD Internal transfer
• Day/night system
•  Horizontal angle of view: 100°

Cleaning the video intercom Doorbell KTUV105G Maxi

To guarantee the high quality and durability of the entire letterbox system, regular cleaning and maintenance is very important.
In the scope of delivery you will receive a can of cleaning agent with which you have to clean the system every 4-6 weeks.
Care is particularly important in the winter months or when you live directly by a body of water.

overall dimensions
Front panel: 160x320x8mm (WxHxD)
